Umbilical carousels

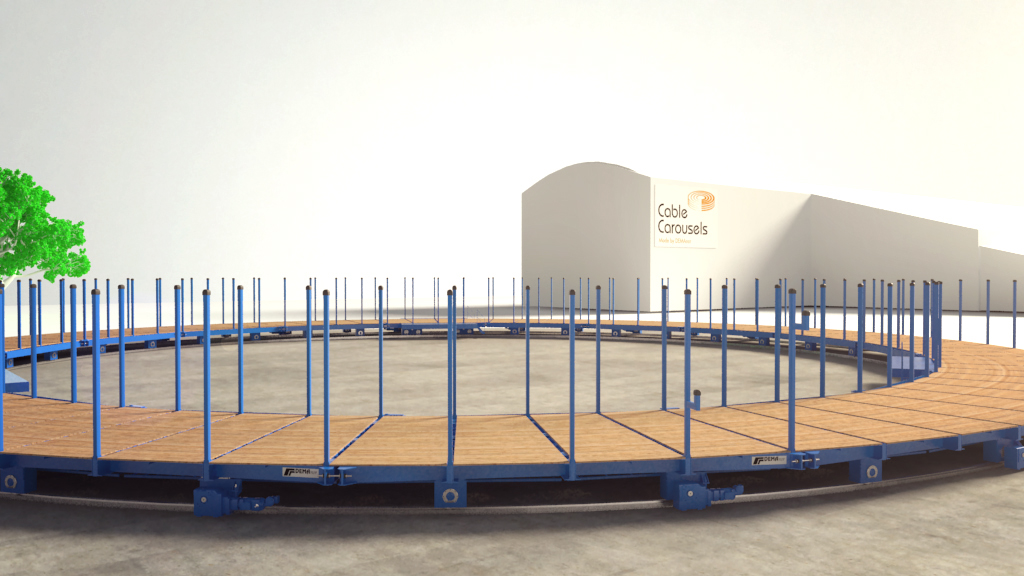

Cable carousel Umbilical is a type of carousel customized mainly for manufacturing of all types of umbilicals. DEMANOR has supplied umbilical carousels with diameters up to 50 meters, and capacity of 4,200 tons.

For umbilical carousels the inner bearing can be replaced with guide rollers at the outer rail. For concentric installations this must be done for the outer carousel. The drives are installed outside the carousel basket, driving the carousel via a pinion on the output gearbox shaft and a bolt ring on the carousel sections.

For some umbilical carousels the drives are connected directly to the driven wheels at the outer rail, which gives easy access for service and maintenance.

The carousels can be divided in several compartments if needed.

The carousel can easily be designed to meet any customer´s requirements. The umbilical carousels are designed for larger dimensions and capacities.
